One-Stop PCB Fabrication & PCBA Assembly
From PCB manufacturing and component sourcing to SMT assembly, testing and final integration, we support your electronics projects from prototype to production.
Company Overview
Guangzhou Yihang Electronics Co., Ltd. was established in 2004 and provides one-stop PCB fabrication and PCBA assembly services. From our 3,000 m² manufacturing facility in Nansha District, Guangzhou, we support customers from prototype sampling through to volume production.
We operate six automated SMT production lines and bring PCB fabrication, surface mount assembly, DIP / through-hole assembly, functional testing and box build assembly together under one manufacturing programme. PCB production is supported by both in-house capabilities and qualified manufacturing partners, allowing us to offer flexible solutions for different project requirements — from quick-turn prototypes to stable volume runs.
Our production follows the IPC-A-610 Class 2/3 soldering standard, and our quality management system is certified to ISO 9001, with incoming, in-process, final and outgoing inspection applied to every order.
Manufacturing Services
From bare boards to finished goods — the complete electronics manufacturing chain under one programme.

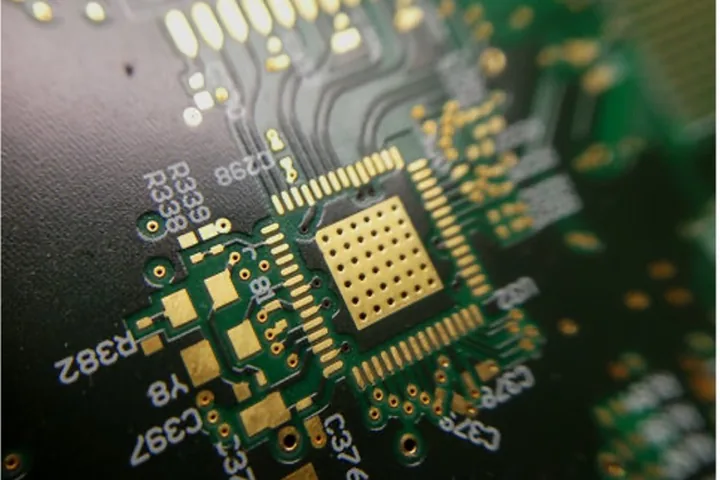

Bare board supply from prototype to volume — 2 to 32 layer multilayer boards, HDI processing and a choice of surface finishes (HASL, ENIG, OSP, hard gold). Delivered through in-house capability and qualified manufacturing partners.
Learn More

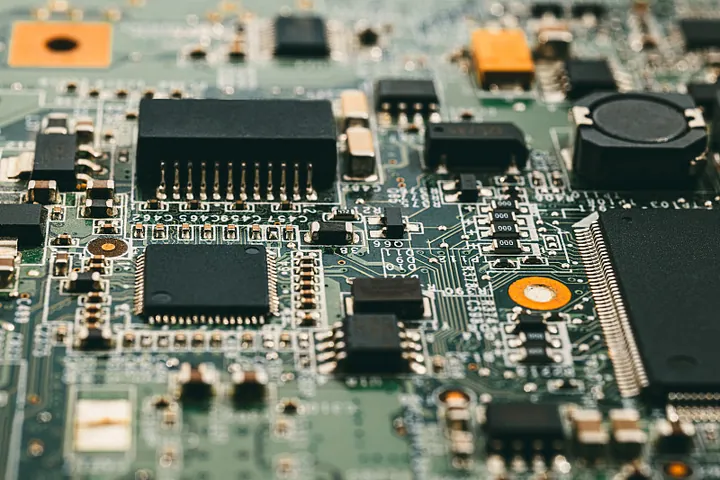

High-speed, high-precision surface mount placement supporting 0201 and 01005 chip components as well as BGA and QFN packages.
Learn More

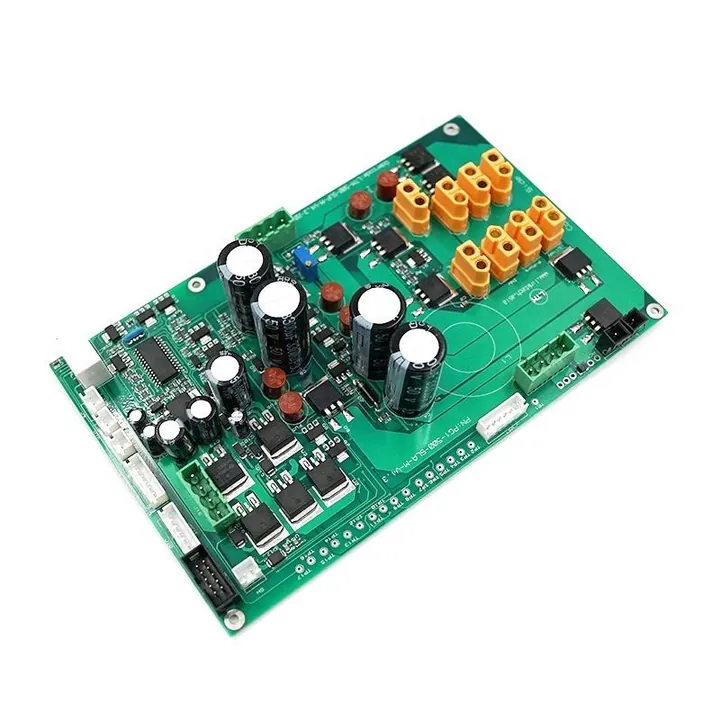

Wave soldering and selective wave soldering for through-hole components and post-soldering, producing full, reliable solder joints.
Learn More

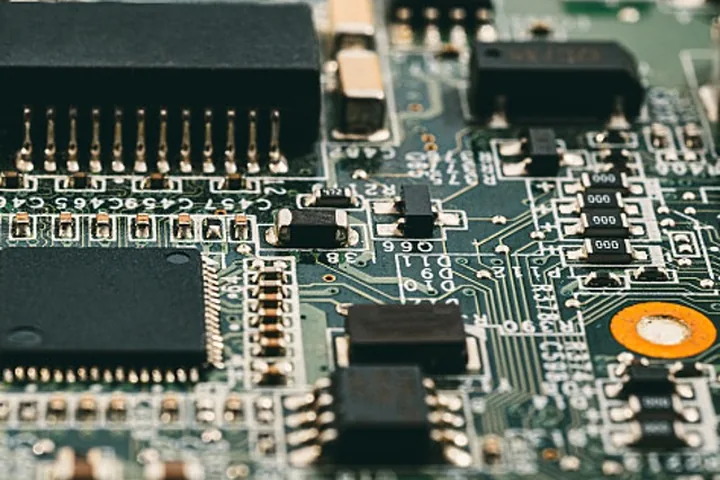

Complete assembly of your bare boards and BOM — solder paste printing, component placement, reflow, DIP assembly and inspection — producing a finished, tested circuit board assembly.
Learn More
ICT in-circuit testing, FCT functional testing and burn-in testing, together with firmware programming and calibration.
Learn More

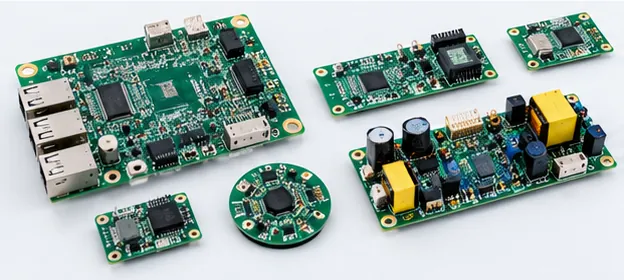

Enclosure assembly, screw fastening, labelling and packaging — taking your product from assembled board to finished, shippable unit.
Learn MoreShare your design files and we will come back with a manufacturing quotation and lead time, usually within 24 hours.
Manufacturing Capabilities
Equipment, capacity and process windows available on our production floor.
| PCB Assembly | |
|---|---|
| Minimum component size | 01005 (0.4 × 0.2 mm) |
| Minimum BGA ball pitch | 0.3 mm |
| Minimum QFN lead pitch | 0.4 mm |
| Maximum PCB assembly size | 350 × 250 mm |
| Solder type | Leaded / lead-free SAC305 |
| Reflow peak temperature | Up to 260 °C, profile customisable |
| Panelisation | V-cut / stamp holes / bridge |
| PCB Fabrication | |
| PCB layer count | 2 – 32 layers |
| Minimum via diameter | 0.15 mm |
| PCB surface finish | HASL / ENIG / OSP / hard gold |
Bare boards are produced through our own fabrication capability and qualified manufacturing partners, so board specifications can be matched to each project.
Quality Assurance
A four-stage inspection system covers every order, from incoming materials through to shipment.
Sampling inspection of purchased components — brand, specification and appearance are verified before any material is released to the line.

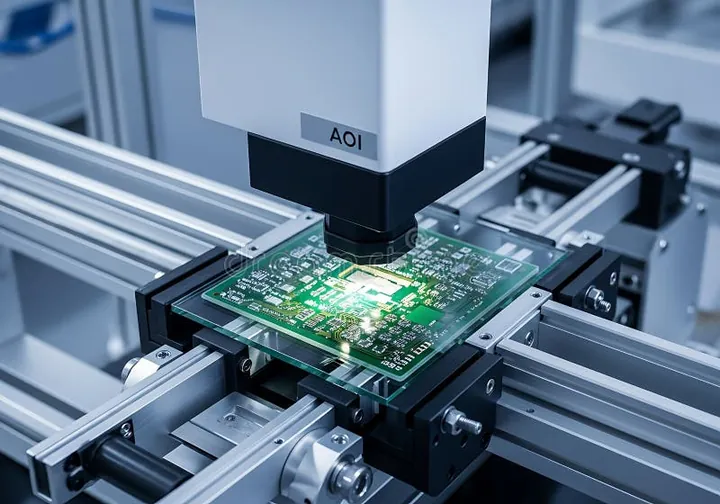

First-article confirmation and patrol inspection every two hours, with SPI solder paste inspection and AOI optical inspection applied to every board.
Full visual inspection, ICT / FCT functional testing and burn-in testing, with non-conforming units isolated and handled separately.
Packaging checks, label verification and outgoing sampling inspection before goods are released for delivery.
Industries Served
Manufacturing experience across a broad range of electronics products and end markets.
Smartphones, smart home devices, wearables and audio products.
PLC controllers, industrial sensors, servo drives and human-machine interfaces.
Routers, network switches, 5G modules and optical communication equipment.
Photovoltaic inverters, energy storage systems, EV chargers and power management.
Core Strengths
Established in 2004, with more than 20 years dedicated to PCBA manufacturing and a broad base of industry manufacturing experience.
Six automated SMT lines with high-speed and multi-function placement machines, ten-zone reflow ovens, SPI and AOI systems, and X-ray inspection.
A four-stage inspection system, IPC-A-610 Class 2/3 soldering standards and an ISO 9001 quality management system, with traceability through production.
Standardised workflows and flexible lines support short prototype runs and stable volume output — typically 3–5 days for prototypes and 7–15 days for batch production.
A dedicated account manager for every customer, engineering support responses within two hours, and technical support available 7×24.
PCB fabrication, SMT and through-hole assembly, functional testing, box build and logistics handled by a single supplier, with a clear progress update at every stage.
Send Gerber files and BOM; quotation within 24 hours.
Price, lead time and technical requirements confirmed; contract signed.
Component sourcing or customer-supplied material, all released through IQC.
SMT and DIP production followed by functional testing.
FQC final inspection and OQC outgoing inspection.
Packing and dispatch with shipment tracking and after-sales support.
Get in Touch
Contact us by email for quotations and technical inquiries, or reach out via WhatsApp for a quick conversation.
E-mail enquiries go straight to our sales team; quotations usually within 24 hours.
